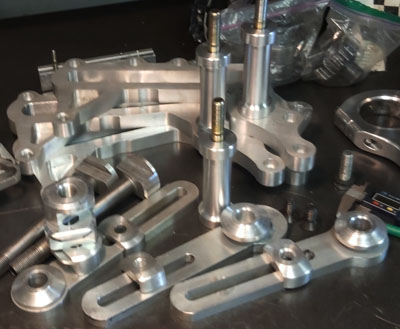

Idler Plates

Black TFX
Idler plate Hemi-TFX, or BAE
Idler plate Hemi-TFX with ger drive support
(optional - tabs for snout support) shown

Top Braces .5" slot
Top Brace Washer .75 Bore (optional .625)
Stud Idler Pulley 6.8" .75"-16tpi
Stud .5"x 2.25" NF/NC
Sliding Washer Top Idler Brace

.75" -16 12PT Nut
.5" -20 Nut

'T" nut - For 1 Inch Slot Idler Plate
Angled Idler Plate Spacers

Magneto Drive Spacer/Support
